SCREEN PRINTING MACHINE FOR LIDS & PLATES
TURNTABLE SCREEN UV PRINTERS
RSF106 RSF108 RSF112
Color: 1 1 2
Speed: Up To: 15pcs/min 60pcs/min 60pcs/min
LAZER MARKER for PLASTIC CAPS
LAZER PRINTER FOR PLASTIC CAPS
Specifications
Main Machine Functions:
1. Feeding and capping function; dual-flame surface treatment function; 2-group 2-color offset printing function; energy-saving and environmentally friendly LED-UV curing function; conveyor belt discharge counting and diversion function.
2. Main Configuration:
Main reducer: Taiwan Cheng-Ta
Main motor: Italy SITI
PLC: Japan Omron
Touchscreen: Taiwan Welink
Push-button switch: Japan Izumi
Solenoid valve: Japan SMC
Cylinder: Taiwan AIRTIC
3. Technical Parameters:
Cap diameter: 28-42mm
Maximum printing area: 30mm diameter
Machine speed: up to 1500pcs/min
Printing speed: Varies depending on the cap
Air pressure: 7 Bar
Gas pressure: 1.5 Bar
Power requirements: 3-phase 5-wire 380V 50/60HZ
Rated power: 5KW
Machine weight: Approximately 1600kg (excluding cap feeding machine)

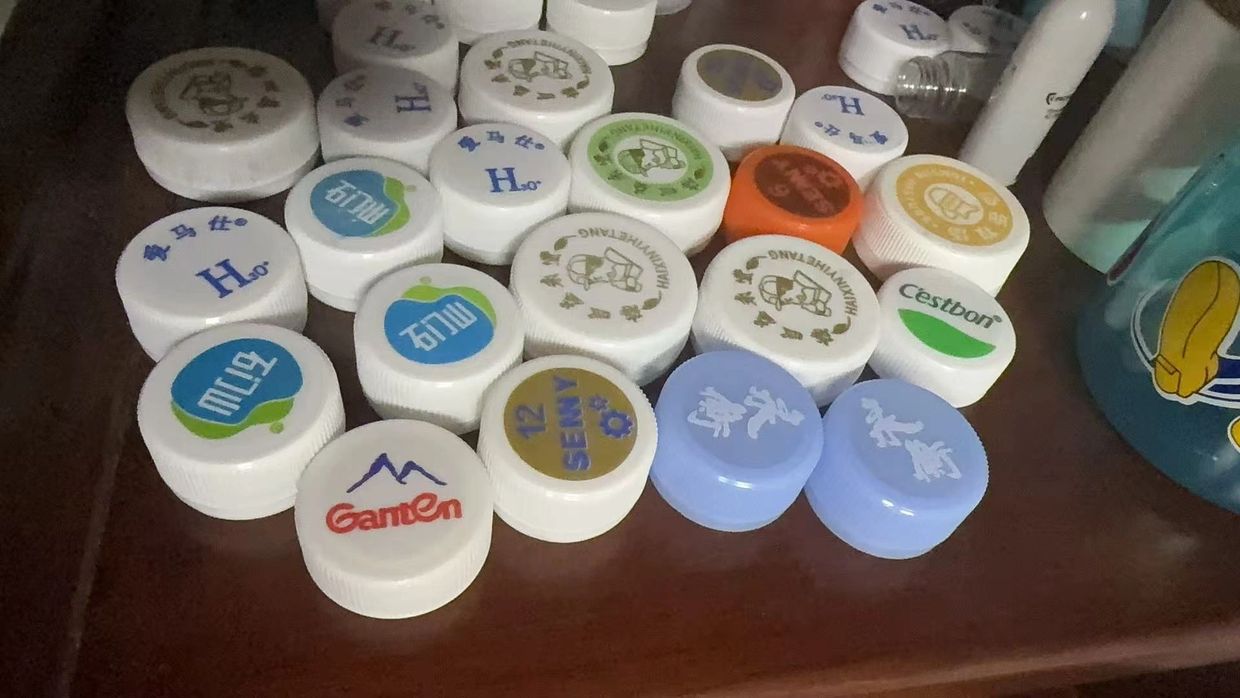

4. Application Scope: This machine is suitable for printing two colors of UV ink on the surface of plastic bottle caps.
